Jumat, 11 Maret 2011

CARA INSTALL WINDOWS7 BETA

bagaimana-install-windows-7-00
Windows 7 dijangka keluar di pasaran pada bulan Oktober ini. Namun, jika anda berkesempatan untuk memuat-turun sistem pengoperasian ini pada peringkat Beta dahulu, anda sudah boleh mencuba untuk memasang Windows 7 pada komputer anda. Atas permintaan beberapa orang pembaca, saya akan terangkan langkah-langkah untuk memasang Windows 7 Beta ke dalam komputer anda.

Cara-cara memasang Windows 7 Beta

Seperti biasa, perkara pertama yang anda harus lakukan adalah memastikan PC anda dapat membaca DVD ketika ia mula-mula dihidupkan. Ini dapat dilaksanakan dengan menetapkan boot sequence yang pertama kepada CD/DVD. Setelah boot sequence telah ditetapkan, masukkan DVD Windows 7 Beta dan hidupkan komputer anda.
Perhatian: Oleh kerana Windows 7 ini masih dalam peringkat Beta, masalah mungkin berlaku dalam proses pemasangan. Gunakan hard disk berasingan sekiranya anda bimbang akan keselamatan hard disk yang mempunyai dokumen-dokumen anda. Jika anda ingin meneruskan pemasangan, ikuti langkah-langkah di bawah ini:
  1. Skrin pertama yang keluar akan memaparkan msej “Windows is loading files…”, tunggu sehingga proses ini selesai.
    bagaimana-install-windows-7-01
  2. Kotak pertama, kedua, dan ketiga memaparkan pilihan bahasa, zon masa dan matawang, serta tetapan papan kekunci. Tetapkan pilihan anda dan klik Next.
    bagaimana-install-windows-7-02
  3. Klik pada butang “Install Now” untuk memulakan pemasangan Windows 7.
    bagaimana-install-windows-7-03
  4. Tandakan pada kotak “I accept license terms” dan klik Next.
    bagaimana-install-windows-7-04
  5. Klik pada butang Custom untuk melakukan pemasangan bersih Windows 7.
    bagaimana-install-windows-7-05
  6. Pilih partition manakah yang akan memuatkan Windows 7, dan klik Next.
    bagaimana-install-windows-7-06
  7. Proses pemasangan telah bermula. Tunggu sehingga proses pemasangan selesai.
    bagaimana-install-windows-7-07
  8. Setelah proses pemasangan siap, anda akan dikehendaki untuk membuat beberapa tetapan asas terhadap Windows 7 anda. Pertama sekali, masukkan nama anda dan nama bagi komputer, kemudian klik Next.
    bagaimana-install-windows-7-08
  9. Masukkan kata laluan bagi akaun Windows 7 anda dan klik Next.
    bagaimana-install-windows-7-09
  10. Masukkan nombor siri yang anda perolehi dari Microsoft sewaktu muat—turun dahulu, dan klik Next.
    bagaimana-install-windows-7-10
  11. Pilih pilihan bagi Windows Update. Untuk memastikan Windows 7 anda sentiasa dikemaskini, pilih “User recommended settings”
    bagaimana-install-windows-7-11
  12. Pilh zon masa anda dan klik Next.
    bagaimana-install-windows-7-12
  13. Kini Windows 7 sudah siap dipasang, dan anda sudah boleh mula menggunakannya.
    bagaimana-install-windows-7-13
Proses pemasangan Windows 7 adalah lebih mudah dan pantas berbanding Windows XP. Sekiranya anda mempunyai sebarang soalan, sila tinggalkan di ruangan komen, selamat mencuba :)

Selasa, 08 Maret 2011

NIE CARA NYA KLO LIISENSINYA EROR

UG license installation error solution

If u have question?
Licence Server not Found.
License server not started yet.
UG FLEXlm Error.
UG Installation error.
UG license installation error.
Unigraphics initialization error.
Then u reached at right place, here is the solution for these errors........if in doubt please feel free to ask....
copy license file in your installation directory.
C:\Program Files\UGS\UGSLicensing\

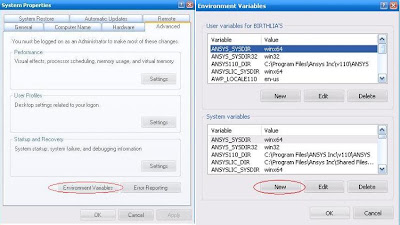

right click on My Computer ->Properties-> advance tab -> environment variables.
click on new tab
in variable name write ------UGII_LICENSE_FILE
in variable values write HTML clipboard-----27000@COMPUTER
then open your lmtools.exe from licensing tool. then
1. click on configure using services.
2. then click on menu: start/stop/reread
3. then stop running server
4. then again click on service/license file menu
5 select configuration using license file.
6. click on browse and select the file copied lic file
C:\Program Files\UGS\UGSLicensing\nx4.lic
7. then again click on configuration using services.
8. click on start/stop/reread menu
9. click on start server.

CARA INSTALL LICENSI UNIGRAFIK NX 6

UG NX 6 INSTALLATION STEP BY STEP GUIDE IN XP x32 BIT

This tutorial is spacial for UG NX 6 (also works with UG NX 5), and describe the step by step process of license configuration and installation.

First of all let's see how to edit license file for our personal computer. This include host name and port value setting in license file.

  1. Open license file with notepad.
  2. Change this_host with your computer name. for example my computer name is CAD-PC. (Know your Host Name, Computer Name, Host-ID etc.)
  3. Set port value 28000@Host Name.

All these are shown in picture below for example.



After completion of license file editing, start installation of UG.

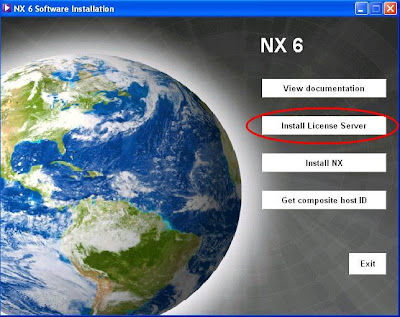

  • First of all start installation of license server.


  • For language select English (United States) and click Next.
  • Select installation folder for license server and click next. (Default is Like C:\Program Files\UGS\UGSLicensing\ ). Keep the Default.
  • After that this will ask you the location of license file. Click Browse and select the license file which you edited and click Next.
  • It will ask you to start installation. Select install.
  • This will install the license server on your computer.
Thereafter start the Installation of Unigraphics NX 6 software :

  • Click on Install NX.
  • For language select English (United States) and click Next.
  • During Setup type select Typical and click Next.
  • Destination Folder : keep default or you can select other as you wish. click Next.
  • During licensing it will ask you to enter server name. This will be like 28000@cad-pc for my PC or 28000@Your Host Name for your computer.
  • If server name is correct as described above then click Next.
  • For language select English or choose as per your requirement click Next.
  • After that it setup will ask you to review or change the installation setting.
  • If the setting is OK then click Install or if anything wrong then click back and repeat the above process to reset all. (Hope that everything will be OK)
  • After installation finish run UG from program list or restart your computer and run UG from program list.
If you are installing from the image downloaded by torrent, you have to follow the installation steps provided with the crack, like copy the over cracked files etc.

There is nothing to do anything else, your program will work file like as shown:

CARA INSTALL UNIGRAFIK NX 6

Install UG NX 6 x32 bit in Windows 7 x64 bit.(Step by Step Guide)

From a long time the readers of CAD Help Center are still searching the solution for installation process of Unigraphics (UG NX 5 or NX 6) in Windows Vista (x32 or x64 bit).

After a long time now I have got a chance to try to install and see the errors while installation or running the UG NX 6 in Windows 7 x64 bit. I was unable to get Windows Vista to try out the UG NX 5 or NX 6, but I have seen that the Windows 7 is up-gradation in Windows Vista.

This is not the final version of Windows 7 but I have got a Genuine copy of this Windows 7 Ultimate x64(Check the screen shot).Can say best ever operating system till today. This is ultra fast to work like copy, paste, installation or uninstallation of a programs,Graphics and other features.



I hope that if the UG NX 6 is running in Windows 7, it will also work in Vista in both.(32 or 64 bit).And also UG NX 5 will work like this in Vista.


So here i am writing the procedure of how I install UG NX 6 and configured license file and others files.
  • Mount or Open the Image in Image Drive. (like Nero or Ultra ISO)
  • Auto Play will start Installation Automatically.
  • If Auto Play will not work then open the Image Drive and Double click on Launch file.
  • First of all install the License Server.(This is same as in my previous Post : See here )
  • Note that in all versions of x64 bit Windows, if the software you are installing is x32 bit, this will be installed by default in Program files (x86) like. (C:\Program Files (x86)\UGS\UGSLicensing\)
  • After finishing the installation of License Server click on Install NX.


  • Select English(United States) as setup Language or select as of your Windows Language.
  • Installation will begin and ask you for Setup Type select Typical and click Next.
  • Choose Destination Folder as per your own choice. By default it is (D:\Program Files (x86)\UGS\NX 6.0\) . After Destination Folder selection click on Next.
  • Select the NX Language as your Operating System or Windows Language.
  • Then if you are ready to install the program click Install or if you want to modify any setting then click Back.
  • This will start the installation of the program on your Computer. Just wait till the installation wizard Install UG NX 6.
  • After installation finish run UG from program list or restart your computer and run UG from program list.
If you are installing from the image downloaded by torrent, you have to follow the installation steps provided with the crack, like copy the over cracked files etc.
  • The UG NX 6 will work fine in Windows 7 x64 bit as shown below.




Hope that this will help you to run this great software in a great Windows.

Let me know if you have any issue during installation or running.
